KIRTHAI HEP - II
Kirthai-II HE Project is a run-of- river project located in Kishtwar district, J&K at about 25 Kms upstream of Kiru H.E. Project on river Chenab. The project would provide an annual generation of 3329.52 MU in a 90% dependable year.
Feature List
|
Feature Name |
Description |
| Approach |
Nearest rail head: Udhampur – 180 KM
Nearest Airport : Jammu – 240 KM
|
| Location |
District Kisthwar, UT of Jammu & Kashmir |
| Capacity |
930 MW (6X140+2X35+2X10) |
| Design Energy |
3329.52 MUs (in a 90% dependable year) |
| Date of Commercial Operation (COD) |
60 Months |
| Estimated Project Cost |
₹ 6384.39 Crore at February 2020 Price level |
| River |
CHENAB |

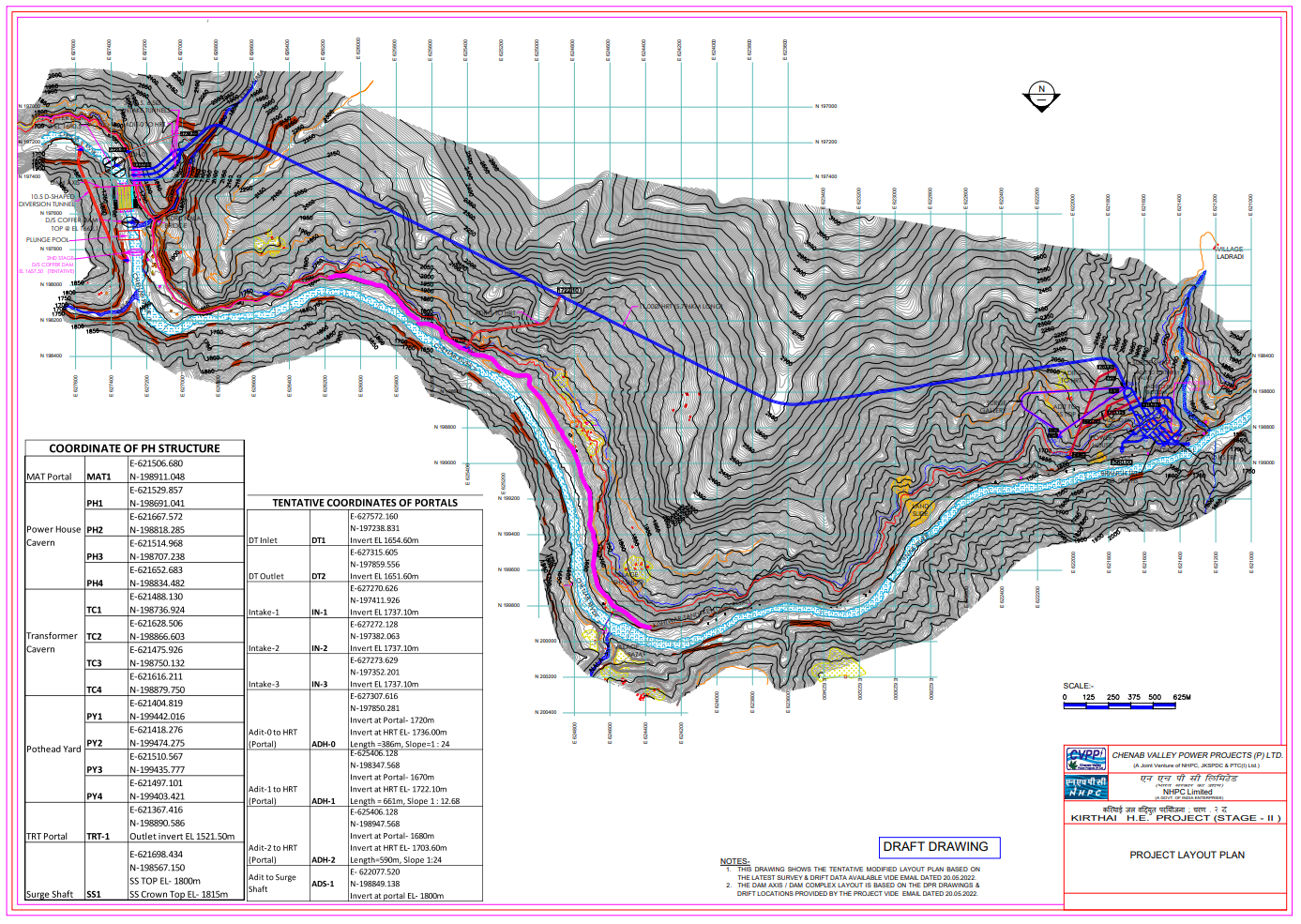

TECHNICAL FEATURES- The structures required to be constructed for Kirthai-II HE Project are:
HRT
| 1 no., 11m diameter, 5.79 km length |
Dam
| 131m (H) , Concrete Gravity
|
Surge Shaft
| 22.5 m dia. & 97.0 m height
|
Pressure Shaft
| 2 No., 6.6 m 310m length each
|
Power House
| Underground (6X140+2X35+2X10)
|
Project Status
| Under Clearance
|
